VISUALGOB

by TRIBE

ORDER CODE: VISUALGOB

Image projector with 34W CW COB LED, 10°-24° beam, IP20, 42,2W, 2 kg

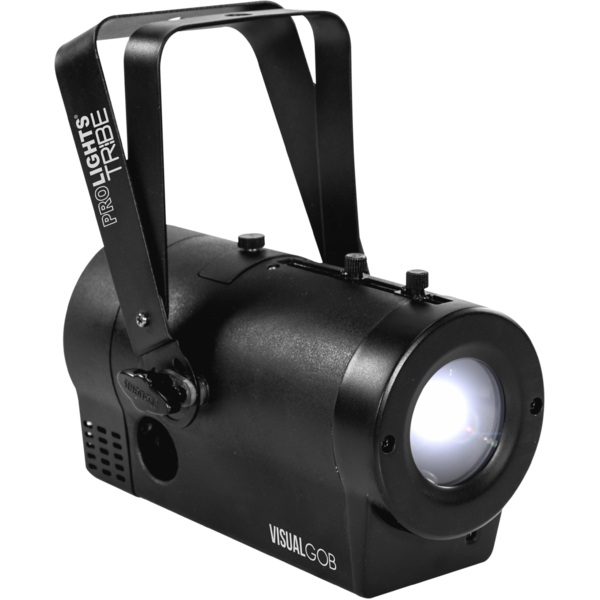

VISUALGOB is a compact image projector with a LED light source, designed to set a new standard in the field of gobo projectors. The highly-efficient optical system has been studied by combining a 34 W white LED chip with a special 10° - 24° zoom lens, resulting in incredibly bright, compact and energy-saving fixtures. VISUALGOB can be also controlled wirelessly through the optional USB WIFI transceiver in combination with WIFIBOX and the SmartColors app or through the IR remote.

Main features:

34 W high-efficiency COB white LED
Zoom range: 10° - 24°
Projection effects: clockwise and counterclockwise rotations, fixed projection
USB port for USB Wi-Fi transceiver (optional)

PHOTO GALLERY

Technical specifications

LIGHT SOURCE

Source: 34W White COB LED
Luminous flux: max angle: 946 lm - min angle: 996
Lux: (10°) 3'028lx @3 m
Lux: (24°) 765lx @3 m
Source life expectancy: > 50.000 h

OPTICS

Zoom: 10° - 24° manual
Focus: manual

DYNAMIC EFFECTS

Gobo size: outer: 25,7 mm - image: 19 mm - thickness: up to 3 mm

BODY

Body: sturdy aluminum profile
Body colour: black

CONTROL

Protocols: DMX512
DMX channels: 2channel
Wireless Control: optional, proprietary protocol compatible with WIFIBOX, WDBOX
Display: LED display user interface
Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
IR: infrared sensor controlled by remote
Master/Slave: for synchronised operation of more units linked in a chain

ELECTRONICS

Dimmer: linear 0 ~ 100% electronic dimmer
LED Control: flicker free operation

ELECTRICAL

Mains power supply: 100-240V - 50/60Hz
Max power consumption: 42,2W
Max power consumption (at 120V): 44,1W
Output (at 230V): 31 units on a single power line
Output (at 120V): 16 units on a single power line

PHYSICAL

IP rating: 20
Cooling: passive cooling and fan-free
Suspension and fixing: double hanging bracket suitable for safe hanging and for floor positioning
Signal connection: XLR 3p IN/OUT connectors
Power connection: IEC IN/OUT connectors
Dimensions (WxHxD): 144x244x223mm / 5.67''x9.61''x8.78''
Weight: 2kg / 4.41lbs

CERTIFICATIONS / APPROVALS

Certifications / Approvals: CE, UKCA

BOX CONTENT

1 x VISUALGOB
1 x 1,5 meters BARE END - IEC power cable
10 x gobos
User Manual
