ARCSHINE12
Share me

IP66

Immagine Principale
  • ARCSHINE12
  • ARCSHINE12
  • ARCSHINE12
  • ARCSHINE12
  • ARCSHINE12
  • ARCSHINE12
  • ARCSHINE12
  • ARCSHINE12
  • ARCSHINE12
    • ARCSHINE12
    Code Color Synthesis Avail.
    ARCSHINE12FC Full Color
    ARCSHINE12TU Tungsten
    ARCSHINE12DY Daylight

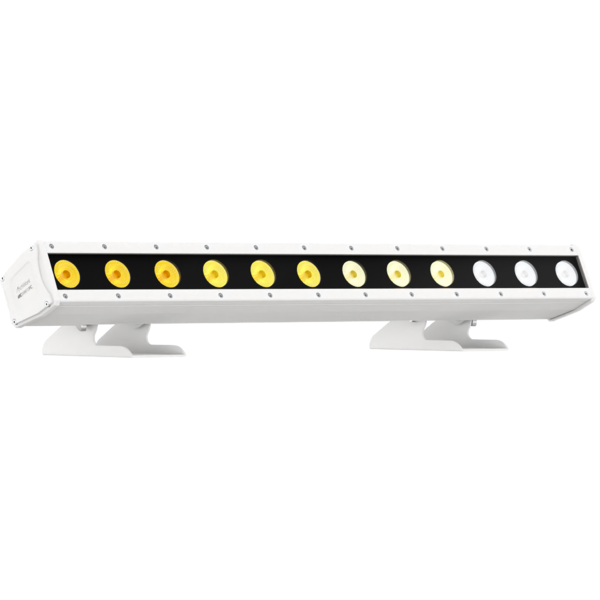

    ARCSHINE12 is a linear wall washer with 12x8 W RGBW / FC LEDs source designed for outdoor installations where a high-performance linear projector with superb brightness and chromatic precision is required. The linear shape design and the slim profile allows the ARCSHINE12 to be easily integrated into any architectural design both indoor and outdoor (IP66) due to the construction of chassis in die-cast aluminium and tempered glass. This linear luminaire also features individual pixel control of each emitters for extended dynamic and creative possibilities.

    Features:
    12x8 W RGBW / FC LEDs with pixel control
    Slim profile and fanless
    IP66 for outdoor installs

    LIGHT SOURCE
    • Source:
      12x8
      W
      RGBW / FC LEDs
    • Luminous flux:
      3'177
      lm
    • Lux:
      (15°) 4'020
      lx
      @3 m full
    • Lux:
      (15°) 1'447
      lx
      @5 m full
    • Source life expectancy:
      50.000 hrs (L70 @25° C / 77° F)
    OPTICS
    • Beam angle:
      15
      °
    • Field angle:
      22
      °
    • Additional optics:
      25° - 45° (optional)
    COLOUR SYSTEM
    • Colour mixing:
      RGBW / FC
    • White presets:
      3.200 K ~ 10.000
      K
    • Colour wheel:
      virtual colour wheel with macros
    • Macros:
      several pre-build macros with adjustable speed
    DYNAMIC EFFECTS
    • Static colour mode:
      selection of static colour
    • Manual colour mode:
      manual adjustment of colour
    • Auto mode:
      built-in programs with execution speed adjustment
    BODY
    • Body:
      sturdy die-cast aluminium body
    • Body colour:
      RAL 9003
    CONTROL
    • Protocols:
      DMX512
    • DMX channels:
      4 / 6 / 10 / 24 / 29
      channel
    • Pixel control:
      pixel2pixel control
    • Display:
      touch - sensitive LED display
    • Firmware upgrade:
      yes, via USB - DMX interface (UPBOX1) not included
    • Master/Slave:
      for synchronized operation of more units linked in a chain
    ELECTRONICS
    • Dimmer:
      linear 0 ~ 100% electronic dimmer
    • Dimmer curves:
      4
      Selectable dimming modes available
    • Strobe / shutter:
      1 ~ 30
      Hz, electronic
    • Operating temperature:
      -20° C / +45° C (-4° F / +113° F)
    • LED Control:
      flicker free operation
    ELECTRICAL
    • Mains power supply:
      100-240 V – 50/60 Hz
    • Max power consumption:
      103
      W
    • Output (at 230 V):
      16
      units on a single power line
    PHYSICAL
    • Cooling:
      pressure and temperature balance through GORE membrane vents
    • Sospension and fixing:
      bracket for hanging and positioning
    • Adaptors:
      XLR and Schuko 16A adaptors included
    • Signal connection:
      moulded IP signal IN/OUT connectors
    • Power connection:
      moulded IP signal IN/OUT connectors
    • IP rating:
      66
      for outdoor installations
    • Dimensions (WxHxD):
      990x200x187
      mm
    • Weight:
      8,8
      kg
    CODICE PRODOTTO
