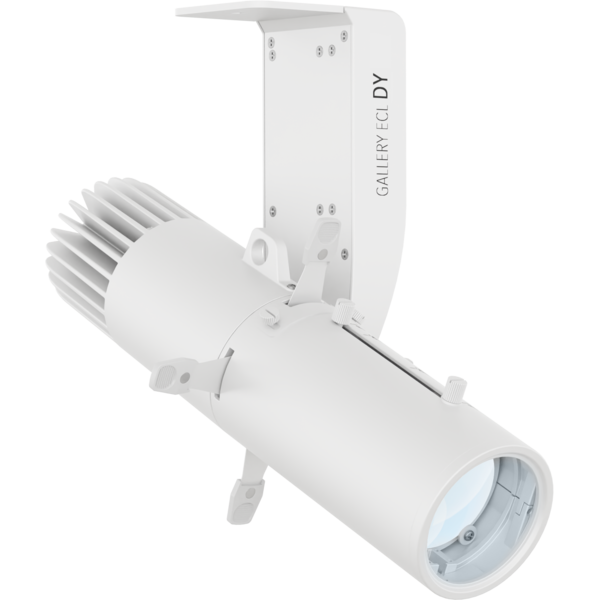

GALLERYECL
PROLIGHTS

EclGalleryProfile

35W zoomable LED ellipsoidals with static white LED source and framing shutter

EclGalleryProfile is a compact LED ellipsoidal luminaire engineered with white LED engine and available in Tungsten, Neutral and Daylight White variants, all featuring exceptional high CRI. The luminaire is designed with a stunning aesthetics and it offers a total control of the light, performing a linear zoom system from 16° to 36°, framing shutters for an accurate focusing of the light, and gobo mounting option for image projections. EclGalleryProfile is fitted with electronic and PSU on board, allowing to be implemented on lighting tracks simply applying a track adapter and the fixture can be easily controlled by wireless. EclGalleryProfile is truly flexible for any commercials, venues, art-galleries and churches.

Main features:

  • 35W White LED source in multiple variants: Tungsten, Neutral, Daylight
  • 16° to 36° on-board zoom with framing shutter and gobo holder
  • Wireless DMX control and optional track adapters for easy implementation

PHOTO GALLERY

Technical specifications

LIGHT SOURCE
  • Source: 35W high-power white LED
  • CCT: (TU) 3.200 K - (NW) 4.000 K - (DY) 5.000
  • Luminous flux: (16°) (TU) 1'887 lm; (NW) 1'947 lm; (DY) 2'095 @Full
  • Luminous flux: (36°) (TU) 2'150 lm; (NW) 2'236 lm; (DY) 2'425 lm @full
  • Lux: (16°) (TU) 1'209 lx; (NW) 1'324 lx; (DY) 1'782lx @5 m full
  • Lux: (36°) (TU) 371 lx; (NW) 367 lx; (DY) 455lx @5 m full
  • CRI: (TU) >90 - (NW) > 89 - (DY) >80
  • TLCI: (TU) >92 ; (DY) > 67
  • TM30 Rf: (TU) >89 ; (DY) > 80
  • TM30 Rg: (TU) >98 ; (DY) >93
  • Source life expectancy: > 70.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
  • Zoom range: 16° - 36° manual
  • Lens type: high-quality glass lens optics
  • Focus: manual
  • Other: accessory gobo holder for images and texture projection
DYNAMIC EFFECTS
  • Gobo size: E, outer: 37 mm - image: 23 mm - thickness: 1,1 mm
  • Manual mode: manual adjustment of dimmer and strobe
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Body: sturdy die-cast aluminium body
  • Body colour: RAL 9004 or RAL 9003
CONTROL
  • Protocols: W-DMX
  • DMX channels: 1 / 3channel
  • Wireless Control: included, wireless solution receiver
  • Display: Graphic User Interface
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Operating temperature: -20° C / +45° C (-4° F / +113° F) Ta
  • LED Control: flicker free operation
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 42W
  • Output (at 230V): 38 units on a single power line
  • Power factor: > 0,97
PHYSICAL
  • IP rating: 30
  • Cooling: fan-free projector with a chassis designed for natural convection cooling
  • Data connection: W-DMX
  • Power connection: 1,5 metres 3G0,75 bare end connection
  • Dimensions (WxHxD): 196x293x378mm / 7.72''x11.54''x14.88''
  • Weight: 2,5kg / 5.51lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT

Versions

Code
CT
CRI
Lumen
Lumen
GALLERYECLBTU
GALLERYECLBTU
3.200 K
90
Black
Black
GALLERYECLWTU
GALLERYECLWTU
3.200 K
90
White
White
GALLERYECLBNW
GALLERYECLBNW
4.000 K
89
Black
Black
GALLERYECLWNW
GALLERYECLWNW
4.000 K
89
White
White
GALLERYECLBDY
GALLERYECLBDY
5.000 K
80
Black
Black
GALLERYECLWDY
GALLERYECLWDY
5.000 K
80
White
White

Accessories & Related Products

<b>ÆtherBox</b>
ÆtherBox
(Optional)
IP65 1 universe CRMX transceiver, DMX and Ethernet protocols, Wi-Fi, Bluetooth and battery ready
<b>ÆtherBox</b> LITE
ÆtherBox LITE
(Optional)
1 Universe CRMX Wireless Transceiver
NAKKT3013185
NAKKT3013185
(Optional)
Kit for NAXTSA683 adapter, white
NAKKT3013184
NAKKT3013184
(Optional)
Kit for NAXTSA682 adapter, black
LRLUNA
LRLUNA
(Optional)
Single Universe DMX transceiver with Bluetooth
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
GALLERYECLGH
GALLERYECLGH
(Included)
Gobo holder for GALLERYECL profiler series.
TRACKADA
TRACKADA
(Optional)

DOWNLOAD

Data sheet & specs

DMX chart & personalities

File name File size Download
DMX chartGalleryecl_DMX_CHARTS.pdf45KB
DMX chartGalleryeclbnw_DMX_CHARTS.pdf44KB
GALLERYECLBTU Firmware rev. 1.4
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
GALLERYECLBNW Firmware rev. 1.4
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights@galleryeclipsenw@1ch.xmlDownload
prolights@galleryeclipsenw@3ch.xmlDownload
GALLERYECLBDY Firmware rev. 1.3
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Tech docs

File name File size Download

Software

File name File size Download
SoftwareProlights Dialux Plug-In192MB

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: {Upbox}
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.6 STABLE 26/04/2023 Rev. 1.0
1.4 STABLE 02/12/2019 Improved Display Management
1.3 STABLE 02/07/2018 Improved auto store values time when fixtures lose dmx signal.
Update Tool: {Upbox}
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.6 STABLE 26/04/2023 Rev. 1.0
1.4 STABLE 30/12/2019 Improved display management Rev. 1.0
Update Tool: {Upbox}
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.6 STABLE 26/04/2023 Rev. 1.0
1.4 STABLE 30/12/2019 Improved display management Rev. 1.0
Update Tool: {Upbox}
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.6 STABLE 26/04/2023
Fixed bug:

  • When the light source is on, and remove the DMX signal, the fixture will hold the last setting but after do the Factory Reload, the light is still on.
Rev. 1.0
Update Tool: {Upbox}
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.4 STABLE 02/12/2019 Improved Display Management
Update Tool: {Upbox}
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.4 STABLE 02/12/2019 Improved Display Management
