SUNBLASTFLX
PROLIGHTS

Sunblast FLX

ORDER CODE: SUNBLASTFLX

IP65 modular and graphical LED Strobe with white beam + RGB+WW plate, 1200W peak power

The Sunblast FLX is a high-performance, IP65-rated LED fixture that combines both strobe and washlight  capabilities for versatile applications. Its hybrid design includes a central linear white LED beam that replicates the traditional xenon-bulb filament of classic strobes, alongside RGB+Warm White LED plate that provide intense washlight with superior color rendering, powered by Spektra OS.

With advanced pixel mapping, the Sunblast FLX offers precise control over 28 individual pixels - 12 for the white LED strip and 16 for the RGB+WW panel - enabling dynamic effects and creative flexibility. With a peak power output of 1200W when strobing and 400W for continuous floodlighting, it's engineered to deliver exceptional brightness.

Designed for easy, tool-free assembly, the Sunblast FLX features a modular rigging system that supports both vertical and horizontal configurations in clusters. Its rugged IP65 rating ensures dependable performance in outdoor environments, making it an ideal solution for festivals, events, and temporary architectural lighting. Equipped with both wired (sACN and Art-Net) and wireless (CRMX) control options, it integrates seamlessly into any lighting system.

SPEKTRA

Main features:

  • IP65-rated hybrid LED strobe featuring a white LED strip and RGB+Warm White plate, delivering 1200W peak power in strobe mode and 400W continuous output
  • Advanced pixel mapping with 28 pixels: 16 for RGB+WW and 12 for the white LED beam
  • Tool-free rigging system supporting both horizontal and vertical modular mounting, with multiple accessory options for versatile setups

PHOTO GALLERY

Technical specifications

LIGHT SOURCE
  • Source: (Beam 12 px) 60 x 12 white LEDs + (Plate 16 px) 1.024 x 1,2W RGBWW LEDs
  • Luminous flux: Full Power Strobe - Combined: 108'526 lm @Full
  • Luminous flux: Full Power Wash - Plate: 32'771 lm @full
  • Luminous flux: Full Power Wash - Beam: 45'170 lm @full
  • Luminous flux: Full Power Wash - Combined: 40'507 lm @full
  • Lux: Full Power Strobe - Combined: 1'710lx @5 m full
  • Lux: Full Power Wash - Plate: 467lx @5 m full
  • Lux: Full Power Wash - Beam: 729lx @5 m full
  • Lux: Full Power Wash - Combined: 621lx @5 m full
  • Source life expectancy: > 20.000 h
OPTICS
  • Beam angle: (Plate) RGB+WW: 112° - (Beam) White LEDs: 49° x 130°
  • Field angle: (Plate) RGB+WW: 152° - (Beam) White LEDs: 79° x 155°
COLOUR SYSTEM
  • Colour control: CCT, RGBW, HSI, Colour Macros
  • Colour mixing: RGB+WW + White LEDs
  • CCT: CCT control range from 2.800K to 10.000K, + / - green correction, tungsten emulation
  • White presets: 2.800-10.000K
  • Macros: Gels library on-board
DYNAMIC EFFECTS
  • Control Resolution: 16-bit dimmer, colours
  • Pixel patterns: pre-programmed dynamic and static patterns
  • FX generator: adjustable foreground/background colour, index, speed, direction
  • Static mode: selection of static dimmer, colors and color temperature
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Bracket system: Several brackets available for simply array mounting - see available accessories
  • Hardware on-board: fast ancor points on the front for accessory mounting and on board mechanics for modular assembly of multiple fixtures
  • Body: weatherproof IP65 construction with die-cast magnesium alloy
  • Body colour: black
CONTROL
  • Protocols: DMX512, RDM, ArtNet, sACN, CRMX
  • DMX channels: 7 / 13 / 21 / 36 / 32 / 42 / 47 / 60channel
  • Pixel control: 16 px RGB+WW LEDs + 12 px White LEDs individually select and control sections
  • Wireless Control: Included LumenRadio Timo Fx DMX/RDM receiver compatible with CRMX (Lumen Radio) and W-DMX (Wireless DMX)
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
  • EtherFlow: Ethernet pass-through switch that preserves network connectivity even when the fixture is unpowered.
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Display battery: self-charging battery backup
  • Operating temperature: -20° C / +45° C (-4° F / +113° F) Ta
  • LED Control: flicker free frequency with adjustable PWM
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: strobe: 1.200 W (peak) - wash: 400W
  • Standby power: 7,6W
  • Output (at 230V): 2 units on a single power line
  • Power factor: > 0,94
PHYSICAL
  • IP rating: IP65 for temporary outdoor application, not for fixed installations
  • Cooling: active, silent operation
  • Suspension and fixing: hanging bracket for floor positioning with "Quick-Lock" system
  • Signal connection: IP65 Seetronic XLR 5p IN/OUT connectors
  • Data connection: Seetronic Ethernet IP in/out connectors
  • Power connection: Seetronic powerCON waterproof IN/OUT connectors
  • Dimensions (WxHxD): 460 x 170 x 170mm / 18.11''x6.69''x6.69''
  • Weight: 11,6kg / 25.57lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, RCM, FCC, cTUVus
BOX CONTENT

Versions

Accessories & Related Products

<b>Æther</b> Link
Æther Link
(Optional)
IP66 rated 1 Universe CRMX wireless transceiver for permanent outdoor installation
<b>ÆtherBox</b> Two
ÆtherBox Two
(Optional)
IP65 2 universes CRMX transceiver, DMX and Ethernet protocols, Wi-Fi, Bluetooth, battery and POE
<b>ÆtherBox</b> LITE
ÆtherBox LITE
(Optional)
1 Universe CRMX Wireless Transceiver
<b>ÆtherBox</b>
ÆtherBox
(Optional)
IP65 1 universe CRMX transceiver, DMX and Ethernet protocols, Wi-Fi, Bluetooth and battery ready
LRLUNA
LRLUNA
(Optional)
Single Universe DMX transceiver with Bluetooth
FCLSUNBLASTFLX
FCLSUNBLASTFLX
(Optional)
Flight case for 6x SUNBLASTFLX (with and without bracket)

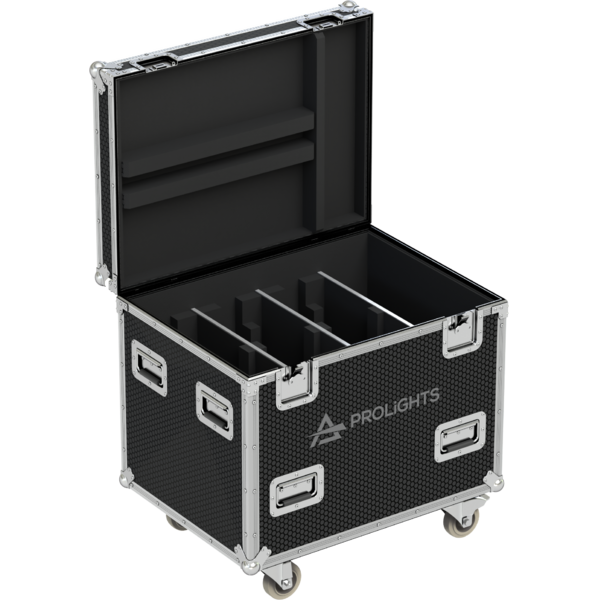

FCLSUNFLX
FCLSUNFLX
(Optional)
Flight case per 6 pcs SUNRISE2FLX/SUNBLASTFLX (with and without bracket)

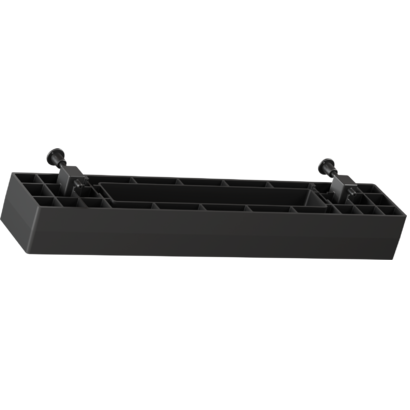

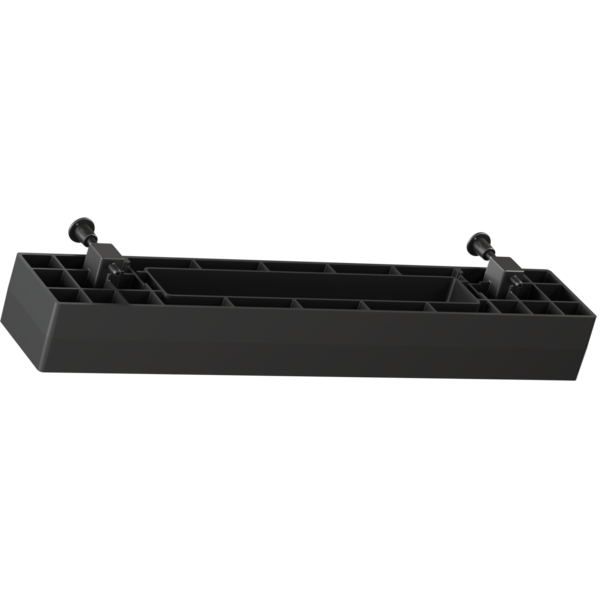

SRFLXSPC
SRFLXSPC
(Optional)
Spacer for SUN FLX series projectors
SBLFLXB01H
SBLFLXB01H
(Included)
Horizontal mounting bracket for 1 SUNBLASTFLX
SBLFLXB01V
SBLFLXB01V
(Optional)
Vertical mounting bracket for 1 SUNBLASTFLX
SBLFLXB02H
SBLFLXB02H
(Optional)
Horizontal mounting bracket for 2 SUNBLASTFLX
SBLFLXB02V
SBLFLXB02V
(Optional)
Vertical mounting bracket for 2 SUNBLASTFLX
OS25PLUS
OS25PLUS
(Included)
Quick-lock omega bracket, M12 hole
OS25H3PLUS
OS25H3PLUS
(Optional)
Quick-lock omega bracket, 6 cm height, M12 hole
ECLFRSPG
ECLFRSPG
(Optional)
Spigot for PROLIGHTS fixtures
SBLFLXFILTHD
SBLFLXFILTHD
(Optional)
High diffusion filter for SUNBLASTFLX
SBLFLXFILTMD
SBLFLXFILTMD
(Optional)
Medium diffusion filter for SUNBLASTFLX
SBLFLXFILTBK
SBLFLXFILTBK
(Optional)
Smoked filter for SUNBLASTFLX
SBLFLXSPACER
SBLFLXSPACER
(Optional)
Filter spacer for SUNBLASTFLX

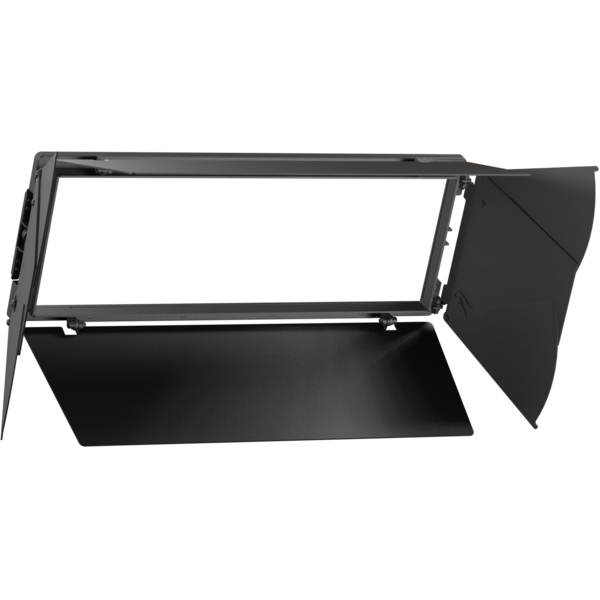

SBLFLXBD
SBLFLXBD
(Optional)
Barn door with 4 directional flaps to adjust the light beam for SUNBLASTFLX
SBLFLXHB005V
SBLFLXHB005V
(Optional)
Vertical suspension bracket for SUNBLASTFLX
SBLFLXHB01H
SBLFLXHB01H
(Optional)
Horizontal suspension bracket for SUNBLASTFLX
SBLFLXFLR
SBLFLXFLR
(Optional)
Floor bracket for SUNBLASTFLX
SBLFLXADPFLR
SBLFLXADPFLR
(Optional)
Adapter plate for stacked floor mounting for SUNBLASTFLX
SBLFLXHHFLRB
SBLFLXHHFLRB
(Optional)
Adjustable bracket for hanging or floor mounting of SUNBLASTFLX
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

User manual

DMX chart & personalities

File name File size Download
DMX chartSunblastflx_DMX_CHARTS.pdf1MB

SUNBLASTFLX Firmware rev. 0.0.00.0018

manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Tech docs

File name File size Download
Noise ReportSunblastflx_NOISE_REPORT.pdf575KB

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (complete download is available on Customer Care - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Additional info:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all interfaces (UPBOXPRO, UPBOX1 and UPBOX2)
  • It's possible to update NET boards (with .EHEX files) following this guide with software Professional Uploader
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
0.0.00.0018 ALPHA 13/08/2025 Improvements:
  • Improved sACN protocol management.
  • Improved RDM compliance and Manufacturer PID management.
Fixed Bugs:
  • Strobe Rate doesn't work properly
  • Improved effects in all DMX Modes.
  • Default values for Manufacturer PIDs ‘Led Mode' and ‘Errors' are incorrect.
