ECLDISPLAYCC
PROLIGHTS

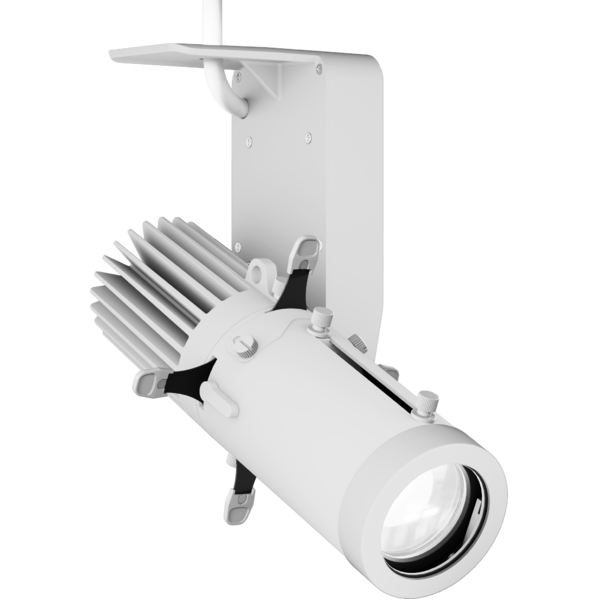

EclDisplay CCWhite

25W White LED gallery light, constant current to be connected to external PSU & Driver

EclDisplay is a range of revolutionary and flexible LED spotlights designed for galleries, retail and any public venue where an advanced but classical looking fixture is needed, with several control options, sources and optic versions available to precisely meet any application. The EclDisplay CC is the version of the EclDisplay range made to be connected to an external Constant Current PSU and driver (max 700mA/36V), selecting among the PROLIGHTS accessories or any third-party compatible component, leaving to System Integrators to install this luminaire in venues with their own wiring distribution and control. The EclDisplay CC includes a high-efficiency 25 W White, high CRI LED source, available in 2.700 K, 3.000 K, 4.000 K, 5.600 K variants, and it is completed with a wide selection of optional profile (zoom and static) or wash lenses, and other optical accessories like louvres and snoots, making it truly a multi-purpose fixture.

5 YEARS WARRANTY

Main features:

  • Constant Current version to be connected to external PSU and driver (max 700mA/36V)
  • 25W high CRI White LED available in 2.700 K, 3.000 K, 4.000 K, 5.600 K versions, both black and white housing
  • Multiple lens options: profile (zoom and static) or wash optics
See variants CONFIGURATOR

PHOTO GALLERY

EclDisplay CCWhite
EclDisplay CCWhite
EclDisplay CCWhite
EclDisplay CCWhite
EclDisplay CCWhite
EclDisplay CCWhite
EclDisplay CCWhite
EclDisplay CCWhite
EclDisplay CCWhite
EclDisplay CCWhite
EclDisplay CCWhite

Technical specifications

LIGHT SOURCE
  • Source: 25W White COB LED
  • Luminous flux: (2.800 K - 17°) 1'498 lm - (2.800 K - 36°) 1'586 lm - (3.000 K - 17°) 1'556 lm - (3.000 K - 36°) 1'676 @Full
  • Luminous flux: (4.000 K - 17°) 1'576 lm - (4.000 K - 36°) 1'810 lm - (5.600 K - 17°) 1'631 lm - (5.600 K - 36°) 1'869 lm @ full
  • Lux: (2.800 K - 17°) 825 lx - (2.800 K - 36°) 221 lx - (3.000 K - 17°) 1'556 lx - (3.000 K - 17°) 887 lx - (3.000 K - 36°) 241lx @5 m full
  • Lux: (4.000 K - 17°) 923 lx - (4.000 K - 36°) 245 lx - (5.600 K - 17°) 964 lx - (5.600 K - 36°) 256lx @5 m full
  • CRI: 90.5 @2.800 K; 90 @3.000 K; 92.9 @4.000 K; 90.5 @5.600 K
  • TLCI: 87 @2.800 K; 88 @3.000 K; 94 @4.000 K; 93 @5.600 K
  • TM30 Rf: > 89 @2.800 K and 3.000 K; > 91 @4.000 K; > 88 @5.600 K
  • TM30 Rg: < 101 @2.800 K and 3.000 K; > 99 @4.000 K; < 101 @5.600 K
  • Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
  • Zoom range: (wash lens - optional) 15° ~ 30° or 25° ~ 50° - (profile lens - optional) 10° ~ 20° or 20° ~ 40° or fix 8°
  • Other: 360° lens rotation - optional 360° rotating barndoors and gel frame holder
  • Other: (profile lens) shutter blades lockable
  • Other: (profile lens - optional) manual rotating gobo holder size E, outer: 37 mm - image: 23 mm - thickness: max 3 mm
BODY
  • Hardware on-board: lockable tilt with screw
  • Body: aluminium die-casting
  • Body colour: RAL 9004 or RAL 9010
  • Other: 1m cable included - Cable diameter range: 6 - 10 mm
ELECTRICAL
  • Constant Current mains: max 700mA/36V
  • Max power consumption: 25W
  • Output (at 230V): 40 units on a single power line
PHYSICAL
  • Operating Temperature: -10° ~ +45°
  • IP rating: 20
  • Cooling: passive cooling and fan-free
  • Suspension and fixing: track / hanging / ceiling installation
  • Data connection: screw terminal blocks
  • Dimensions (WxHxD): 124X200x115.5mm / 4.88''x4.55''
  • Weight: 1,15kg / 2.54lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT

Versions

Code
CT
Finishing
Track adapter
Optics
ECLDISPLAYCC27KB
ECLDISPLAYCC27KB
2700K
Black
Not included
Not included
ECLDISPLAYCC30KB
ECLDISPLAYCC30KB
3000K
Black
Not included
Not included
ECLDISPLAYCC40KB
ECLDISPLAYCC40KB
4000K
Black
Not included
Not included
ECLDISPLAYCC56KB
ECLDISPLAYCC56KB
5600K
Black
Not included
Not included
ECLDISPLAYCC27KW
ECLDISPLAYCC27KW
2700K
White
Not included
Not included
ECLDISPLAYCC30KW
ECLDISPLAYCC30KW
3000K
White
Not included
Not included
ECLDISPLAYCC40KW
ECLDISPLAYCC40KW
4000K
White
Not included
Not included
ECLDISPLAYCC56KW
ECLDISPLAYCC56KW
5600K
White
Not included
Not included
