EclDisplay DATFC

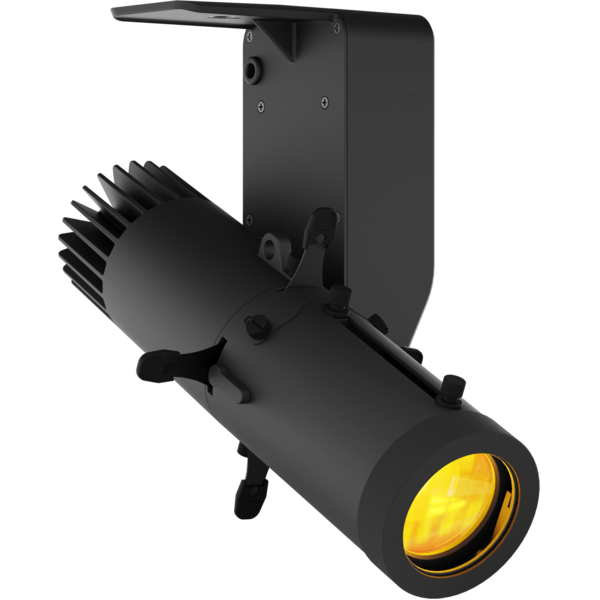

40W RGB+WW LED gallery light, Tunable White and Full Colour with data control (DMX, Dali T8, knob-dimming)

EclDisplay is a range of revolutionary and flexible LED spotlights designed for galleries, retail and any public venue where an advanced but classical looking fixture is needed, with several control options, sources and optic versions available to precisely meet any application. The EclDisplay DATFC can be set and addressed through RDM, featuring a broad set of on-board input control options: DMX, DALI Type 8, local knob dimming control. The EclDisplay DATFC includes a high-efficiency 40W RGB + Warm White LED capable of delivering both a Full Colour spectrum and also tuneable White, and it is completed with a wide selection of optional profile (zoom and static) or wash lenses, and other optical accessories like louvres and snoots, making it a truly a multi-purpose fixture.

5 YEARS WARRANTY

Main features:

  • Universal control through RDM, DMX, DALI Type 8 and local knob dimming
  • 40W RGB + Warm White LED capable to deliver both a Full Colour generation and also Tunable White
  • Multiple lens options: profile (zoom and static) or wash optics
See variants CONFIGURATOR

PHOTO GALLERY

EclDisplay DATFC
EclDisplay DATFC
EclDisplay DATFC
EclDisplay DATFC
EclDisplay DATFC
EclDisplay DATFC
EclDisplay DATFC
EclDisplay DATFC
EclDisplay DATFC
EclDisplay DATFC

Technical specifications

LIGHT SOURCE
  • Source: 40W RGB + Warm White LED
  • Luminous flux: (profile 2040 - min) 388 lm - (profile 2040 - max) 344 lm; (wash 2550 - min) 357 lm - (wash 2550 - max) 466 lm; (wash 1530 - min) 363 lm - (wash 1530 - max) 402 @Full
  • Lux: (profile 2040 - min) 194 lx - (profile 2040 max) 44 lx; (wash 2550 - min) 57 lx - (wash 2550 - max) 23 lx; (wash 1530 - min) 143 lx - (wash 1530 - max) 68lx @5 m full
  • Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
  • Zoom range: (wash lens - optional) 15° ~ 30° or 25° ~ 50° - (profile lens - optional) 10° ~ 20° or 20° ~ 40° or 8°
  • Other: 360° lens rotation - shutter blades lockable - optional 360° rotating barndoors and gel frame holder
  • Other: (profile lens) shutter blades lockable
  • Other: (profile lens - optional) manual rotating gobo holder size E, outer: 37 mm - image: 23 mm - thickness: max 3 mm
COLOUR SYSTEM
  • Colour mixing: RGB + Warm White
  • CCT: CCT control through dedicated DMX channel
  • Colour wheel: virtual colour wheel with macros
DYNAMIC EFFECTS
  • Control Resolution: 16-bit dimmer, colours
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Hardware on-board: lockable tilt with screw
  • Body: aluminium die-casting
  • Body colour: RAL 9004 or RAL 9010
  • Other: cable not included - Cable diameter range: 6 - 10 mm
CONTROL
  • Protocols: Local Knob, DMX, DALI Type8, RDM
  • DMX channels: 5 / 6 / 15channel
  • RDM: RDM for remote monitoring and settings
  • Display: user interface through DATAMASTER external coder (not included)
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • LED Control: flicker free operation
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 35W
  • Output (at 230V): 40 units on a single power line
  • Power factor: > 0,94
PHYSICAL
  • Operating Temperature: -10° ~ +45°
  • IP rating: IP20
  • Cooling: natural convection cooling enabled by a fanless design and a chassis engineered for passive heat dissipation
  • Suspension and fixing: track / hanging / ceiling installation
  • Data connection: screw terminal blocks
  • Power connection: screw terminal blocks
  • Dimensions (WxHxD): 141X200x150mm / 5.55''x5.91''
  • Weight: 1,4kg / 3.09lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT

Versions

Code
Finishing
Track adapter
Optics
ECLDISPLAYDATFCB
ECLDISPLAYDATFCB
Black
Not Included
Not Included
ECLDISPLAYDATFCW
ECLDISPLAYDATFCW
White
Not Included
Not Included

Accessories & Related Products

<b>EclDisplay</b> Filter
EclDisplay Filter
(Optional)
Heavy 10° frost filter for ECLDISPLAY and ECLMINI series, 87 mm diameter
<b>EclDisplay</b> Filter
EclDisplay Filter
(Optional)
Light 1° frost filters for ECLDISPLAY and ECLMINI series, 87 mm diameter
<b>EclDisplay</b> Filter
EclDisplay Filter
(Optional)
Medium 3° frost filter for ECLDISPLAY and ECLMINI series, 87 mm diameter

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetEcldisplaydatfc_A4_DATASHEET_(IT).pdf3MB
Letter datasheetEcldisplaydatfc_A4_DATASHEET_(EN).pdf3MB
Tender SpecificationEcldisplaydatfc_TENDER_SPECIFICATION.pdf4MB

User manual

DMX chart & personalities

File name File size Download
DMX chartEcldisplaydatfc_DMX_CHARTS.pdf122KB
ECLDISPLAYDATFC Firmware rev. 1.9
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Photometrics

CAD symbols & drawings

File name File size Download
3D revitECLDISPLAYDATFC_3D_REVIT.zip1MB
3D sketchupECLDISPLAYDATFC_3D_SKETCHUP.zip2MB
3DECLDISPLAYDATFC_3D.zip2MB
2D cad symbolsECLDISPLAYDATFC_2DSYMBOLS.zip203KB
2DECLDISPLAYDATFC_2D.zip14MB
Technical drawingECLDISPLAYDATFC_TECHNICAL DRAWINGS.zip802KB
VectorWorksPROLIGHTS_VECTORWORKS_v2025_LIBRARY.vwx321MB
VectorWorksPROLIGHTS_VECTORWORKS_v2020_LIBRARY.vwx276MB
VectorWorksECLDISPLAYDATFC_SYMBOLS.zip2MB

Tech docs

File name File size Download

Software

File name File size Download
SoftwareProlights Dialux Plug-In192MB

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.9 STABLE 13/01/2025 New Function:
  • Added new DMX Mode "RGBW"
Improvements:
  • Changed LED Status as follows:
    • In absence of DMX signal = Green Led blinking
    • In presence of DMX signal = Green Led always on.
    • Reduce Status LED Power
  • Device reboots twice when powered on.
  • Set Identify RDM@Loud to default.
Improvement DALI protocol:
  • Now you can set CCT and RGBW colors:
    • DALI-Cockpit software can be used to work with both CCT and RGBW colours.
    • Using Master Configurator software, it is only possible to work in CCT.
Note: In addition to the .prl file, a guide for using CCT/Colors via DALI with DALI-Cockpit software is attached.

Fixed Bug:
  • It is not possible to perform a Factory Reload via RDM twice. A reboot of the device is required.
 Rev. 1.0
Rev. 2.0
