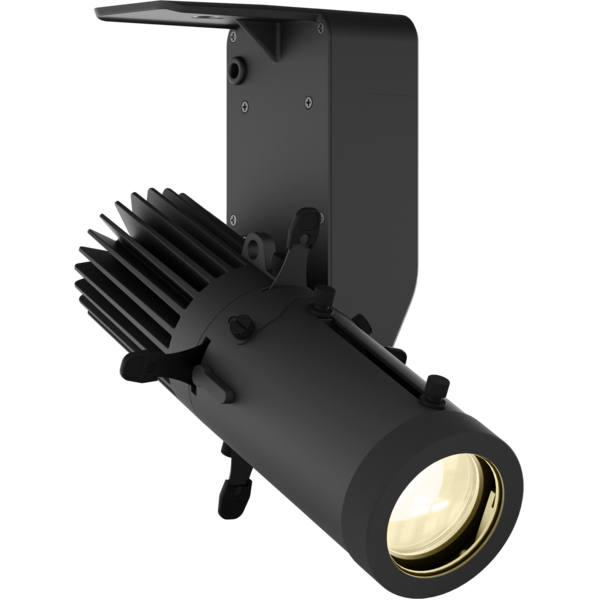

EclDisplay DATVW

35W variable white LED Gallery light, with data control (DMX, Dali T6, knob-dimming)

The EclDisplay is a range of revolutionary and flexible LED spotlights designed for galleries, commercials and any public venue where an advanced but classy fixture, with several control options, sources and optic versions available to precisely meet any application. The EclDisplay DATVW can be set and addressed through RDM, and includes a broad set of on-board input control options: DMX, DALI Type 6 or local knob dimming control. The EclDisplay DATVW includes a high-efficiency 35W tunable white, high CRI LED source, with a CCT range from 2,700K to 5,600K, and it is completed with a wide selection of optional profile (zoom and static) or wash lenses, and other optical accessories like louvres and snoots, making it truly a multi-purpose fixture.

5 YEARS WARRANTY

Main features:

  • Data control through RDM, DMX, DALI Type 6 and local knob dimming
  • 35W high CRI tunable white LED, from 2,700K to 5,600K, in black and white housing
  • Multiple lens options: profile (zoom and static) or wash optics
See variants

PHOTO GALLERY

EclDisplay DATVW
EclDisplay DATVW
EclDisplay DATVW
EclDisplay DATVW
EclDisplay DATVW
EclDisplay DATVW
EclDisplay DATVW
EclDisplay DATVW
EclDisplay DATVW

Technical specifications

LIGHT SOURCE
  • Source: 35W Tunable White LED
  • CCT: 2700K to 5600K
  • Luminous flux: 2700K: (profile - 8°) 461 lm - (profile - 18° HD) 525 lm - (profile - 36° HD) 582 lm - (profile - 50° HD) 573 lm - (profile - 10°-20°) 838 lm @20° - (profile - 20°-40°) 833 lm @40° - (wash 25°-50°) 866 lm @50° - (wash 15°-30°) 802 lm @30°
  • Luminous flux: 5600K: (profile - 8°) 641 lm - (profile - 18° HD) 1'180 lm - (profile - 36° HD) 1'242 lm - (profile - 50° HD) 1'225 lm - (profile - 10°-20°) 1'168 lm @20° - (profile - 20°-40°) 1'153 lm @40° - (wash 25°-50°) 1'183 lm @50° - (wash 15°-30°) 1'122 lm @30°
  • Lux: 2700K: (profile - 8°) 1'334 lx - (profile - 18° HD) 338 lx - (profile - 36° HD) 110 lx - (profile - 50° HD) 48 lx - (profile - 10°-20°) 1'344 lx @10°; 426 lx @20° - (profile - 20°-40°) 347 lx @20°; 91 lx @40° - (wash 25°-50°) 134 lx @25°; 49 lx @50° - (walx @5 m
  • Lux: 5600K: (profile - 8°) 1'807 lx - (profile - 18° HD) 738 lx - (profile - 36° HD) 232 lx - (profile - 50° HD) 100 lx - (profile - 10°-20°) 1'765 lx @10°; 529 lx @20° - (profile - 20°-40°) 587 lx @20°; 128 lx @40° - (wash 25°-50°) 186 lx @25°; 69 lx @50° - (lx @5 m
  • CRI: 2700K: >96; 5600K: >96
  • R9: 2700K: >87; 5600K: >90
  • TLCI: 2700K: >96; 5600K: >97
  • TM30 Rf: 2700K: >96; 5600K: >92
  • TM30 Rg: 2700K: <101; 5600K: <99
  • Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
  • Zoom: (wash lens - optional) 15° ~ 30° or 25° ~ 50° - (profile lens - optional) 10° ~ 20° or 20° ~ 40° or fix 8°, 18°, 36°, 50°
  • Other: 360° lens rotation - shutter blades lockable - optional 360° rotating barndoors and gel frame holder
  • Other: (profile lens) shutter blades lockable
  • Other: (profile lens - optional) manual rotating gobo holder size E, outer: 37 mm - image: 23 mm - thickness: max 3 mm
COLOUR SYSTEM
  • Colour mixing: warm white + cold white - tunable white
  • CCT: linear CCT control
DYNAMIC EFFECTS
  • Control Resolution: 16-bit dimmer
  • Static mode: selection of static dimmer
  • Manual mode: manual adjustment of dimmer and strobe
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Hardware on-board: lockable tilt with screw
  • Body: aluminium die-casting
  • Body colour: RAL 9004 or RAL 9010
  • Other: cable not included - Cable diameter range: 6 - 10 mm
CONTROL
  • Protocols: Local Knob, DMX, DALI Type6, RDM
  • DMX channels: 1 / 2 / 3 / 4channel
  • RDM: RDM for remote monitoring and settings
  • Display: user interface through DATAMASTER external coder (not included)
  • Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • LED Control: flicker free operation
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 33W
  • Output (at 230V): 40 units on a single power line
  • Power factor: > 0,93
PHYSICAL
  • Operating Temperature: -10° ~ +45°
  • IP rating: 20
  • Cooling: passive cooling and fan-free
  • Suspension and fixing: track / hanging / ceiling installation
  • Data connection: screw terminal blocks
  • Power connection: screw terminal blocks
  • Dimensions (WxHxD): 141X200x150mm / 5.55''x5.91''
  • Weight: 1,5kg / 3.31lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT

Versions

Code
Finishing
Track adapter
Optics
ECLDISPLAYDATVWB
ECLDISPLAYDATVWB
Black
Not included
Not Included
ECLDISPLAYDATVWW
ECLDISPLAYDATVWW
White
Not included
Not Included

Accessories & Related Products

ECLDISPPRL08B
ECLDISPPRL08B
(Optional)
Fix Profile 8° Lens, with 4 framing shutters, for EclDisplay, black
ECLDISPPRL08W
ECLDISPPRL08W
(Optional)
Fix Profile 8° Lens, with 4 framing shutters, for EclDisplay, white
ECLDISPPRHDL18B
ECLDISPPRHDL18B
(Optional)
18° High definition profile lenses for Ecl Display series, black
ECLDISPPRHDL18W
ECLDISPPRHDL18W
(Optional)
18° High definition profile lenses for Ecl Display series, white
ECLDISPPRHDL36B
ECLDISPPRHDL36B
(Optional)
36° High definition profile lenses for Ecl Display series, black
ECLDISPPRHDL36W
ECLDISPPRHDL36W
(Optional)
36° High definition profile lenses for Ecl Display series, white
ECLDISPPRHDL50B
ECLDISPPRHDL50B
(Optional)
50° High definition profile lenses for Ecl Display series, black
ECLDISPPRHDL50W
ECLDISPPRHDL50W
(Optional)
50° High definition profile lenses for Ecl Display series, white
<b>EclDisplay</b> WashLens 15°- 30°
EclDisplay WashLens 15°- 30°
(Optional)
Zoomable Wash Lens 15-30° for EclDisplay, black housing
<b>EclDisplay</b> WashLens 15°- 30°
EclDisplay WashLens 15°- 30°
(Optional)
Zoomable Wash Lens 15-30° for EclDisplay, white housing
<b>EclDisplay</b> WashLens 25°- 50°
EclDisplay WashLens 25°- 50°
(Optional)
Zoomable Wash Lens 25-50° for EclDisplay, black housing
<b>EclDisplay</b> WashLens 25°- 50°
EclDisplay WashLens 25°- 50°
(Optional)
Zoomable Wash Lens 25-50° for EclDisplay, white housing
ECLDISPPHDZL2040B
ECLDISPPHDZL2040B
(Optional)
20° - 40° Zoomable High definition profile lenses for Ecl Display series, black
ECLDISPPHDZL2040W
ECLDISPPHDZL2040W
(Optional)
20° - 40° Zoomable High definition profile lenses for Ecl Display series, white
ECLDISPPRZL1020B
ECLDISPPRZL1020B
(Optional)
Zoomable Profile Lens 10-20°, with 4 framing shutters, for EclDisplay, black
ECLDISPPRZL1020W
ECLDISPPRZL1020W
(Optional)
Zoomable Profile Lens 10-20°, with 4 framing shutters, for EclDisplay, white
<b>EclDisplay</b> ProfileLens
EclDisplay ProfileLens
(Optional)
Zoomable Profile Lens 20-40°, with 4 framing shutters, for EclDisplay, black housing
<b>EclDisplay</b> ProfileLens
EclDisplay ProfileLens
(Optional)
Zoomable Profile Lens 20-40°, with 4 framing shutters, for EclDisplay, white housing
<b>EclDisplay</b> Half Snoot
EclDisplay Half Snoot
(Optional)
Half Snoot for EclDisplay, black housing
<b>EclDisplay</b> Half Snoot
EclDisplay Half Snoot
(Optional)
Half Snoot for EclDisplay, white housing
<b>EclDisplay</b> Full Snoot
EclDisplay Full Snoot
(Optional)
Full Snoot for EclDisplay, black housing
<b>EclDisplay</b> Full Snoot
EclDisplay Full Snoot
(Optional)
Full Snoot for EclDisplay, white housing
<b>EclDisplay</b> Louvre
EclDisplay Louvre
(Optional)
Anti-glare louvre for EclDisplay, black housing
<b>EclDisplay</b> Louvre
EclDisplay Louvre
(Optional)
Anti-glare louvre for EclDisplay, white housing
ECLDISPHNFFB
ECLDISPHNFFB
(Optional)
Holder and filter frame (for Wash and Profile Lenses) for EclDisplay, black
ECLDISPHNFFW
ECLDISPHNFFW
(Optional)
Holder and filter frame (for Wash and Profile Lenses) for EclDisplay, white
<b>EclDisplay</b> Barndoor+Frame
EclDisplay Barndoor+Frame
(Optional)
Barndoor and filter frame (compatible with Wash Lenses) for EclDisplay, black
<b>EclDisplay</b> Barndoor+Frame
EclDisplay Barndoor+Frame
(Optional)
Barndoor and filter frame (compatible with Wash Lenses) for EclDisplay, white
<b>EclDisplay</b> Goboholder
EclDisplay Goboholder
(Optional)
Gobo holder for EclDisplay with manual index gear on board, black
<b>EclDisplay</b> CeilingKit
EclDisplay CeilingKit
(Optional)
Ceiling adapter kit for EclDisplay (without flange)
<b>EclDisplay</b> CeilingAdapterFlange
EclDisplay CeilingAdapterFlange
(Optional)
Black flange to complete the EclDisplay ceiling adapter kit, black
<b>EclDisplay</b> CeilingAdapterFlange
EclDisplay CeilingAdapterFlange
(Optional)
White flange to complete the EclDisplay ceiling adapter kit, white
NAXTSC61002
NAXTSC61002
(Optional)
Global Pulse XTSC Lighting Track, 3 circuit DALI, 1000 mm / 3,28 feet, black
NAXTSC61003
NAXTSC61003
(Optional)
Global Pulse XTSC Lighting Track, 3 circuit DALI, 1000 mm / 3,28 feet, white
NAXTSC62002
NAXTSC62002
(Optional)
Global Pulse XTSC Lighting Track, 3 circuit DALI, 2000 mm / 6,56 feet, black
NAXTSC62003
NAXTSC62003
(Optional)
Global Pulse XTSC Lighting Track, 3 circuit DALI, 2000 mm / 6,56 feet, white
NAXTSC63002
NAXTSC63002
(Optional)
Global Pulse XTSC Lighting Track, 3 circuit DALI, 3000 mm / 9,84 feet, black
NAXTSC63003
NAXTSC63003
(Optional)
Global Pulse XTSC Lighting Track, 3 circuit DALI, 3000 mm / 9,84 feet, white
NAXTSC64002
NAXTSC64002
(Optional)
Global Pulse XTSC Lighting Track, 3 circuit DALI, 4000 mm / 13,12 feet, black
NAXTSC64003
NAXTSC64003
(Optional)
Global Pulse XTSC Lighting Track, 3 circuit DALI, 4000 mm / 13,12 feet, white
NAXTSC6112
NAXTSC6112
(Optional)
Global Pulse XTS Connector 3-CCT DALI end feed, earth right, black
NAXTSC6113
NAXTSC6113
(Optional)
Global Pulse XTS Connector 3-CCT DALI end feed, earth right, white
NAXTSC6122
NAXTSC6122
(Optional)
Global Pulse XTS Connector 3-CCT DALI end feed, earth left, black
NAXTSC6123
NAXTSC6123
(Optional)
Global Pulse XTS Connector 3-CCT DALI end feed, earth left, white
NAXTSC6142
NAXTSC6142
(Optional)
Global Pulse XTS Connector 3-CCT DALI middle feed, black
NAXTSC6212
NAXTSC6212
(Optional)
Global Pulse XTS Connector 3-CCT DALI straight connector, black
NAXTSC6143
NAXTSC6143
(Optional)
Global Pulse XTS Connector 3-CCT DALI middle feed, white
NAXTSC6213
NAXTSC6213
(Optional)
Global Pulse XTS Connector 3-CCT DALI straight connector, white
NAXTSC6232
NAXTSC6232
(Optional)
Global Pulse XTS Connector 3-CCT DALI flexible corner connector, black
NAXTSC6233
NAXTSC6233
(Optional)
Global Pulse XTS Connector 3-CCT DALI flexible corner connector, white
NAXTSNC6342
NAXTSNC6342
(Optional)
Global Pulse XTSN Connector 3-CCT DALI L connector, earth right, black
NAXTSNC6343
NAXTSNC6343
(Optional)
Global Pulse XTSN Connector 3-CCT DALI L connector, earth right, white
NAXTSNC6352
NAXTSNC6352
(Optional)
Global Pulse XTSN Connector 3-CCT DALI L connector, earth left, black
NAXTSNC6353
NAXTSNC6353
(Optional)
Global Pulse XTSN Connector 3-CCT DALI L connector, earth left, white
NAXTSNC6362
NAXTSNC6362
(Optional)
Global Pulse XTSN Connector 3-CCT DALI T connector, earth right/right, black
NAXTSNC6363
NAXTSNC6363
(Optional)
Global Pulse XTSN Connector 3-CCT DALI T connector, earth right/right, white
NAXTSNC6372
NAXTSNC6372
(Optional)
Global Pulse XTSN Connector 3-CCT DALI T connector, earth left/left, black
NAXTSNC6373
NAXTSNC6373
(Optional)
Global Pulse XTSN Connector 3-CCT DALI T connector, earth left/left, white
NAXTSNC6382
NAXTSNC6382
(Optional)
Global Pulse XTSN Connector 3-CCT DALI X connector, black
NAXTSNC6383
NAXTSNC6383
(Optional)
Global Pulse XTSN Connector 3-CCT DALI X connector, white
NAXTSNC6392
NAXTSNC6392
(Optional)
Global Pulse XTSN Connector 3-CCT DALI T connector, earth right/left, black
NAXTSNC6393
NAXTSNC6393
(Optional)
Global Pulse XTSN Connector 3-CCT DALI T connector, earth right/left, white
NAXTSNC6402
NAXTSNC6402
(Optional)
Global Pulse XTSN Connector 3-CCT DALI T connector, earth left/right, black
NAXTSNC6403
NAXTSNC6403
(Optional)
Global Pulse XTSN Connector 3-CCT DALI T connector, earth left/right, white
NAXTS412
NAXTS412
(Optional)
Global Pulse XTS Connector 3-CCT DALI END cap, black
NAXTS413
NAXTS413
(Optional)
Global Pulse XTS Connector 3-CCT DALI END cap, white
NAKKT3013184
NAKKT3013184
(Optional)
Kit for NAXTSA682 adapter, black
NAKKT3013185
NAKKT3013185
(Optional)
Kit for NAXTSA683 adapter, white
NAKKT306007
NAKKT306007
(Optional)
Kit for Global Pulse DMX/DALI 3-Circuit Adapters NAGAC6002, black
NAKKT306008
NAKKT306008
(Optional)
Kit for Global Pulse DMX/DALI 3-Circuit Adapters NAGAC6003, white
NASPW12SK215M
NASPW12SK215M
(Optional)
Global Pulse Track clip wire suspension set 1.5m, 150N, black
NASPW12SK25M
NASPW12SK25M
(Optional)
Global Pulse Track clip wire suspension set 5m, 150N, black
NASPW12SK315M
NASPW12SK315M
(Optional)
Global Pulse Track clip wire suspension set 1.5m, 150N, white
NASPW12SK35M
NASPW12SK35M
(Optional)
Global Pulse Track clip wire suspension set 5m, 150N, white
NASKB122
NASKB122
(Optional)
Global Pulse Track Mounting Clamp for Rod and Wire, 200N, black
NASKB123
NASKB123
(Optional)
Global Pulse Track Mounting Clamp for Rod and Wire, 200N, white
PLCPW93075
PLCPW93075
(Optional)
Power PVC cable H05VV-F 3G0,75, 1 meter lenght
PLCDX53D5
PLCDX53D5
(Optional)
120 Ohm DMX cable, 2 twisted poles, external sheath with reduced diameter, 1 m
PLCPD7501P14D
PLCPD7501P14D
(Optional)
Power & DMX 120 Ohm, 1 meter length, not suitable for track adapter connection
PLCPD7501P68D
PLCPD7501P68D
(Optional)
Power & DMX 120 Ohm
PLCYA7501P14D
PLCYA7501P14D
(Optional)
YY splitter cable Power 3x0.75 mm2 + 5p IN/OUT DMX 120 Ohm, bare end, 1 meter
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
EUT997592
EUT997592
(Optional)
EUTRAC multiAdapter with data bus option, black
EUT997596
EUT997596
(Optional)
EUTRAC multiAdapter with data bus option, white
EUT990662
EUT990662
(Optional)
Mounting nut66 for EUT99759, black
EUT990666
EUT990666
(Optional)
Mounting nut66 for EUT99759, white
EUT996980
EUT996980
(Optional)
Data bus tap EUT99759
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector
<b>Upbox</b> 1
Upbox 1
(Optional)
Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetEcldisplaydatvw_A4_DATASHEET_(EN).pdf507KB
Tender SpecificationEcldisplaydatvw_TENDER_SPECIFICATION.pdf4MB

User manual

DMX chart & personalities

File name File size Download
DMX chartEcldisplaydatvw_DMX_CHARTS.pdf92KB
ECLDISPLAYDATVW Firmware rev. 1.1.00.0
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Photometrics

CAD symbols & drawings

File name File size Download
3D sketchupECLDISPLAYDATVW_3D_SKETCHUP.zip2MB
3D revitECLDISPLAYDATVW_3D_REVIT.zip1MB
2D cad symbolsECLDISPLAYDATVW_2DSYMBOLS.zip203KB
3DECLDISPLAYDATVW_3D.zip1MB
2DECLDISPLAYDATVW_2D.zip15MB
Technical drawingECLDISPLAYDATVW_TECHNICAL DRAWINGS.zip889KB

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOXPRO UPBOXPRO UPBOX1UP5 UPBOX1UP5
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.1.00.0 STABLE 11/07/2023 First stable release. Rev. 1.0

Info Request

News

December 20, 2024
St Paul's Cathedral shines with PROLIGHTS
St Paul's Cathedral shines with PROLIGHTS
December 18, 2024
PROLIGHTS fixtures illuminate Swan Lake on Ice in Abu Dhabi
PROLIGHTS fixtures illuminate Swan Lake on Ice in Abu Dhabi
December 16, 2024
PROLIGHTS Fixtures Illuminate Newsmax Balkans' Belgrade TV Studio
PROLIGHTS Fixtures Illuminate Newsmax Balkans' Belgrade TV Studio
December 12, 2024
PROLIGHTS Fixtures Illuminate Dinosaurs at Naturalis Biodiversity Cente
PROLIGHTS Fixtures Illuminate Dinosaurs at Naturalis Biodiversity Cente
December 09, 2024
Astra Wash19Pix Enhance the Anniversary Concert of ONUKA with NAONI Orchestra
Astra Wash19Pix Enhance the Anniversary Concert of ONUKA with NAONI Orchestra
December 05, 2024
PROLIGHTS Illuminates the Renovation of Club SNC in Constanța, Romania
PROLIGHTS Illuminates the Renovation of Club SNC in Constanța, Romania
December 03, 2024
The Success of the EclProfile CT+ in Swedish Theatres
The Success of the EclProfile CT+ in Swedish Theatres
November 26, 2024
Transforming St. Laurentius Church into a
Transforming St. Laurentius Church into a "Lichterkirche"
November 25, 2024
PROLIGHTS Introduces Sunblast FLX Hybrid Strobe and Floodlight Fixture
PROLIGHTS Introduces Sunblast FLX Hybrid Strobe and Floodlight Fixture
November 20, 2024
PROLIGHTS lights up the Despotovac Cultural Centre
PROLIGHTS lights up the Despotovac Cultural Centre
November 18, 2024
Hotel National Chooses PROLIGHTS for New Stage Lighting Setup
Hotel National Chooses PROLIGHTS for New Stage Lighting Setup
November 11, 2024
PROLIGHTS Illuminates the WWE Experience in Riyadh
PROLIGHTS Illuminates the WWE Experience in Riyadh
Subscribe to our Newsletter
Loading...
