ECLDISPLAYUN
PROLIGHTS

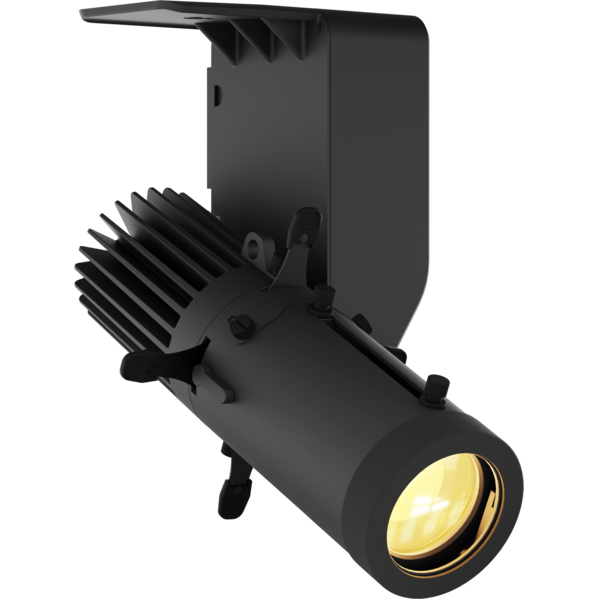

EclDisplay UNWhite

25W White LED gallery light, with universal control (DMX, Dali T6, knob-dimming, phase-cut dimming)

EclDisplay is a range of revolutionary and flexible LED spotlights designed for galleries, retail and any public venue where an advanced but classical looking fixture is needed, with several control options, sources and optic versions available to precisely meet any application.
The EclDisplay UN can be set and addressed through RDM, and includes a broad set of on-board input control options: DMX, DALI Type 6, phase-cut dimming or local knob dimming control.
The EclDisplay UN includes a high-efficiency 25 W White, high CRI LED source, available in 2.700 K, 3.000 K, 4.000 K, 5.600 K variants, and it is completed with a wide selection of optional profile (zoom and static) or wash lenses, and other optical accessories like louvres and snoots, making it truly a multi-purpose fixture.

5 YEARS WARRANTY

Main features:

  • Universal control through RDM, DMX, DALI Type 6, phase-cut dimming and local knob dimming
  • 25W high CRI White LED available in 2.700 K, 3.000 K, 4.000 K, 5.600 K versions, both black and white housing
  • Multiple lens options: profile (zoom and static) or wash optics
See variants CONFIGURATOR

PHOTO GALLERY

EclDisplay UNWhite
EclDisplay UNWhite
EclDisplay UNWhite
EclDisplay UNWhite
EclDisplay UNWhite
EclDisplay UNWhite
EclDisplay UNWhite
EclDisplay UNWhite
EclDisplay UNWhite
EclDisplay UNWhite
EclDisplay UNWhite

Technical specifications

LIGHT SOURCE
  • Source: 25W White COB LED
  • Luminous flux: (2.800 K - 17°) 1'498 lm - (2.800 K - 36°) 1'586 lm - (3.000 K - 17°) 1'556 lm - (3.000 K - 36°) 1'676 @full
  • Luminous flux: (4.000 K - 17°) 1'576 lm - (4.000 K - 36°) 1'810 lm - (5.600 K - 17°) 1'631 lm - (5.600 K - 36°) 1'869 lm @ full
  • Lux: (2.800 K - 17°) 825 lx - (2.800 K - 36°) 221 lx - (3.000 K - 17°) 1'556 lx - (3.000 K - 17°) 887 lx - (3.000 K - 36°) 241lx @5 m full
  • Lux: (4.000 K - 17°) 923 lx - (4.000 K - 36°) 245 lx - (5.600 K - 17°) 964 lx - (5.600 K - 36°) 256lx @5 m full
  • CRI: 90.5 @2.800 K; 90 @3.000 K; 92.9 @4.000 K; 90.5 @5.600 K
  • TLCI: 87 @2.800 K; 88 @3.000 K; 94 @4.000 K; 93 @5.600 K
  • TM30 Rf: > 89 @2.800 K and 3.000 K; > 91 @4.000 K; > 88 @5.600 K
  • TM30 Rg: < 101 @2.800 K and 3.000 K; > 99 @4.000 K; < 101 @5.600 K
  • Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
  • Zoom: (wash lens - optional) 15° ~ 30° or 25° ~ 50° - (profile lens - optional) 10° ~ 20° or 20° ~ 40° or 8°
  • Other: 360° lens rotation - optional 360° rotating barndoors and gel frame holder
  • Other: (profile lens) shutter blades lockable
  • Other: (profile lens - optional) manual rotating gobo holder size E, outer: 37 mm - image: 23 mm - thickness: max 3 mm
DYNAMIC EFFECTS
  • Control Resolution: 16-bit dimmer
  • Static mode: selection of static dimmer
  • Manual mode: manual adjustment of dimmer and strobe
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Hardware on-board: lockable tilt with screw
  • Body: aluminium die-casting
  • Body colour: RAL 9004 or RAL 9010
  • Other: cable not included - Cable diameter range: 6 - 10 mm
CONTROL
  • Protocols: Local Knob, DMX, DALI Type6, RDM, cut phase dimming
  • DMX channels: 1 / 2 / 3 / 4channel
  • RDM: RDM for remote monitoring and settings
  • Display: user interface through DATAMASTER external coder (not included)
  • Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • LED Control: flicker free operation
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 33W
  • Output (at 230V): 40 units on a single power line
  • Power factor: > 0,94
PHYSICAL
  • Operating Temperature: -10° ~ +45°
  • IP rating: 20
  • Cooling: passive cooling and fan-free
  • Suspension and fixing: track / hanging / ceiling installation
  • Data connection: screw terminal blocks
  • Power connection: screw terminal blocks
  • Dimensions (WxHxD): 148X200x115.5mm / 5.83''x4.55''
  • Weight: 1,63kg / 3.59lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT

Versions

Code
CT
Finishing
Track adapter
Optics
ECLDISPLAYUN27KB
ECLDISPLAYUN27KB
2700K
Black
Not included
Not included
ECLDISPLAYUN30KB
ECLDISPLAYUN30KB
3000K
Black
Not included
Not included
ECLDISPLAYUN40KB
ECLDISPLAYUN40KB
4000K
Black
Not included
Not included
ECLDISPLAYUN56KB
ECLDISPLAYUN56KB
5600K
Black
Not included
Not included
ECLDISPLAYUN27KW
ECLDISPLAYUN27KW
2700K
White
Not included
Not included
ECLDISPLAYUN30KW
ECLDISPLAYUN30KW
3000K
White
Not included
Not included
ECLDISPLAYUN40KW
ECLDISPLAYUN40KW
4000K
White
Not included
Not included
ECLDISPLAYUN56KW
ECLDISPLAYUN56KW
5600K
White
Not included
Not included
