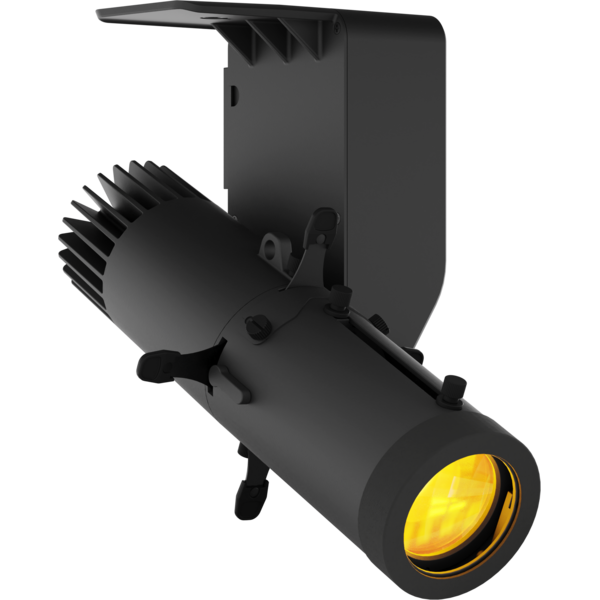

EclDisplay UNFC

40W RGB+WW LED gallery light, Tunable White and Full Colour with universal control (DMX, Dali T8, knob-dimming, phase-cut dimming)

EclDisplay is a range of revolutionary and flexible LED spotlights designed for galleries, retail and any public venue where an advanced but classical looking fixture is needed, with several control options, sources and optic versions available to precisely meet any application.
The EclDisplay UNFC can be set and addressed through RDM, and includes a broad set of on-board input control options: DMX, DALI Type 8, phase-cut dimming or local knob dimming control.
The EclDisplay UNFC includes a high-efficiency 40W RGB + Warm White LED capable of delivering both a Full Colour spectrum and also tuneable White, and it is completed with a wide selection of optional profile (zoom and static) or wash lenses, and other optical accessories like louvres and snoots, making it a truly a multi-purpose fixture.

5 YEARS WARRANTY

Main features:

  • Universal control through RDM, DMX, DALI Type 8, phase-cut dimming and local knob dimming
  • 40W RGB + Warm White LED capable to deliver both a Full Colour generation and also Tunable White
  • Multiple lens options: profile (zoom and static) or wash optics

PHOTO GALLERY

Technical specifications

LIGHT SOURCE
  • Source: 40W RGB + Warm White LED
  • Luminous flux: (profile 2040 - min) 388 lm - (profile 2040 - max) 344 lm; (wash 2550 - min) 357 lm - (wash 2550 - max) 466 lm; (wash 1530 - min) 363 lm - (wash 1530 - max) 402 @full
  • Lux: (profile 2040 - min) 194 lx - (profile 2040 max) 44 lx; (wash 2550 - min) 57 lx - (wash 2550 - max) 23 lx; (wash 1530 - min) 143 lx - (wash 1530 - max) 68lx @5 m full
  • Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
  • Zoom: (wash lens - optional) 15° ~ 30° or 25° ~ 50° - (profile lens - optional) 10° ~ 20° or 20° ~ 40° or 8°
  • Other: 360° lens rotation - shutter blades lockable - optional 360° rotating barndoors and gel frame holder
  • Other: (profile lens) shutter blades lockable
  • Other: (profile lens - optional) manual rotating gobo holder size E, outer: 37 mm - image: 23 mm - thickness: max 3 mm
COLOUR SYSTEM
  • Colour mixing: RGB + Warm White
  • CCT: CCT control through dedicated DMX channel
  • Colour wheel: virtual colour wheel with macros
DYNAMIC EFFECTS
  • Control Resolution: 16-bit dimmer, colours
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Hardware on-board: lockable tilt with screw
  • Body: aluminium die-casting
  • Body colour: RAL 9004 or RAL 9010
  • Other: cable not included - Cable diameter range: 6 - 10 mm
CONTROL
  • Protocols: Local Knob, DMX, DALI Type8, RDM, cut phase dimming
  • DMX channels: 5 / 6 / 15channel
  • RDM: RDM for remote monitoring and settings
  • Display: user interface through DATAMASTER external coder (not included)
  • Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • LED Control: flicker free operation
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 35W
  • Output (at 230V): 40 units on a single power line
  • Power factor: > 0,94
PHYSICAL
  • Operating Temperature: -10° ~ +45°
  • IP rating: 20
  • Cooling: passive cooling and fan-free
  • Suspension and fixing: track / hanging / ceiling installation
  • Data connection: screw terminal blocks
  • Power connection: screw terminal blocks
  • Dimensions (WxHxD): 148X200x150mm / 5.83''x5.91''
  • Weight: 1,63kg / 3.59lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT

Versions

Code
Finishing
Track adapter
Optics
ECLDISPLAYUNFCB
ECLDISPLAYUNFCB
Black
Not Included
Not Included
ECLDISPLAYUNFCW
ECLDISPLAYUNFCW
White
Not included
Not Included
