EclDisplay CRMXWhite new

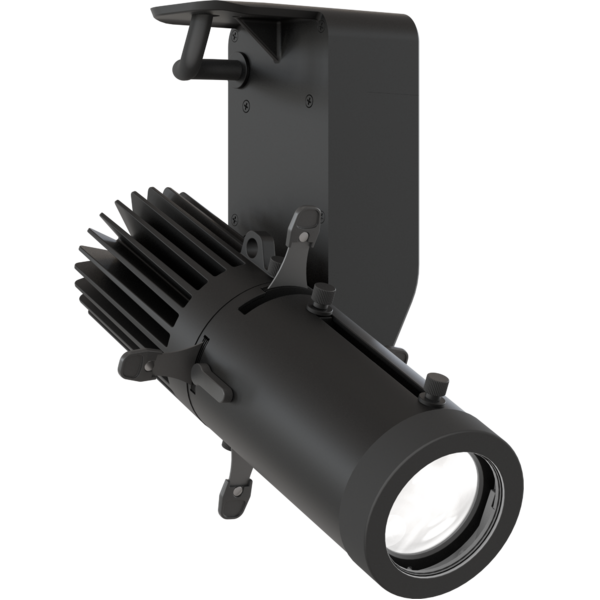

25W White LED Spotlight with Wireless CRMX and wired control, without lens

The EclDisplay CRMX series presents an innovative and versatile range of LED spotlights, designed for use in galleries, commercial spaces, and other public venues. These advanced fixtures are distinguished by their refined design and multiple control options, including both wired and wireless protocols. They are adaptable to a variety of applications, thanks to the availability of different sources and optics.

Each EclDisplay CRMX unit can be programmed and controlled via RDM, encompassing a comprehensive array of built-in input control protocols such as Wireless CRMX, DMX and local knob dimming.

At the heart of the EclDisplay CRMX is a highly efficient White, high CRI LED source. This source is offered in multiple color temperature options: 35 W Variable White and 25 W 2.700K, 3,000 K, 4,000 K, and 5,600 K. The fixture's versatility is further enhanced by an extensive range of optional accessories, including profile (zoom and static) or wash lenses and additional optical elements like louvres and snoots. This makes the EclDisplay CRMX not just a lighting fixture, but a comprehensive lighting solution adaptable to a multitude of environments and needs.

5 YEARS WARRANTY

Main features:

  • Data control through wireless CRMX, RDM, DMX and local knob dimming
  • High CRI White LED available in 35W Variable White and 25W 2.700K, 3.000 K, 4.000 K, 5.600 K
  • Multiple lens options: Profile (zoom and static) or wash optics

PHOTO GALLERY

Technical specifications

LIGHT SOURCE
  • Source: 25W White COB LED
  • Luminous flux: 2.700K: (profile - 20°) 1'270 lm - (profile - 40°) 1'301 lm; (wash 2550 - min) 999 lm - (wash 2550 - max) 1'454 lm; (wash 1530 - min) 1'069 lm - (wash 1530 - max) 1'317 lm @Full
  • Luminous flux: 3.000K: (profile - 20°) 1'352 lm - (profile - 40°) 1'377 lm; (wash 2550 - min) 1'116 lm - (wash 2550 - max) 1'663 lm; (wash 1530 - min) 1'196 lm - (wash 1530 - max) 1'468 lm
  • Luminous flux: 4.000K: (profile - 20°) 1'581 lm - (profile - 40°) 1'568 lm; (wash 2550 - min) 1'242 lm - (wash 2550 - max) 1'788 lm; (wash 1530 - min) 1'329 lm - (wash 1530 - max) 1'639 lm
  • Luminous flux: 5.600K: (profile - 20°) 1'687 lm - (profile - 40°) 1'700 lm; (wash 2550 - min) 1'367 lm - (wash 2550 - max) 1'997 lm; (wash 1530 - min) 1'493 lm - (wash 1530 - max) 1'843 lm
  • Lux: 2.700K: (profile - 20°) 676 lx - (profile - 40°) 194 lx; (wash 2550 - min) 229 lx - (wash 2550 - max) 81 lx; (wash 1530 - min) 556 lx - (wash 1530 - max) 190 lxlx @5 m full
  • Lux: 3.200K: (profile - 20°) 610 lx - (profile - 40°) 185 lx; (wash 2550 - min) 234 lx - (wash 2550 - max) 83 lx; (wash 1530 - min) 571 lx - (wash 1530 - max) 208 lxlx @5 m full
  • Lux: 4.000K: (profile - 20°) 782 lx - (profile - 40°) 235 lx; (wash 2550 - min) 272 lx - (wash 2550 - max) 98 lx; (wash 1530 - min) 683 lx - (wash 1530 - max) 232 lxlx
  • Lux: 5.600K: (profile - 20°) 853 lx - (profile - 40°) 250 lx; (wash 2550 - min) 292 lx - (wash 2550 - max) 107 lx; (wash 1530 - min) 720 lx - (wash 1530 - max) 261 lxlx
  • CRI: > 97 @2.700K; > 98 @3.000K; > 98 @4.000K; >95 @5.600K
  • R9: > 89 @2.700K; > 90 @3.000K; > 90 @4.000K; >82 @5.600K
  • TLCI: > 92 @2.700K; > 98 @3.000K; > 98 @4.000K; >98 @5.600K
  • TM30 Rf: > 95 @2.700K; > 95 @3.000K; > 94 @4.000K; >93 @5.600K
  • TM30 Rg: < 99 @2.700K; < 99 @3.000K; < 100 @4.000K; <101 @5.600K
  • Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
  • Zoom range: (wash lens - optional) 15° ~ 30° or 25° ~ 50° - (profile lens - optional) 10° ~ 20° or 20° ~ 40° or 8°
  • Other: 360° lens rotation - optional 360° rotating barndoors and gel frame holder
  • Other: (profile lens) shutter blades lockable
  • Other: (profile lens - optional) manual rotating gobo holder size E, outer: 37 mm - image: 23 mm - thickness: max 3 mm
DYNAMIC EFFECTS
  • Control Resolution: 16-bit dimmer
  • Static mode: selection of static dimmer
  • Manual mode: manual adjustment of dimmer and strobe
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Hardware on-board: lockable tilt with screw
  • Body: aluminium die-casting
  • Body colour: RAL 9004 or RAL 9010
  • Other: cable not included - Cable diameter range: 6 - 10 mm
CONTROL
  • Protocols: Local Knob, DMX, RDM, CRMX
  • Stand Alone: 1 push encoder
  • DMX channels: 1 / 2 / 3 / 4channel
  • Wireless Control: included, LumenRadio TiMo receiver
  • RDM: RDM for remote monitoring and settings
  • Display: user interface through DATAMASTER external coder (not included)
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • LED Control: flicker free operation
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 33W
  • Output (at 230V): 40 units on a single power line
  • Power factor: > 0,94
PHYSICAL
  • Operating Temperature: -10° ~ +45°
  • IP rating: 20
  • Cooling: passive cooling and fan-free
  • Suspension and fixing: track / hanging / ceiling installation
  • Data connection: screw terminal blocks
  • Power connection: screw terminal blocks
  • Dimensions (WxHxD): 141X200x115.5mm / 5.55''x4.55''
  • Weight: 1,4kg / 3.09lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, RCM

Versions

Code
CT
Finishing
Track adapter
Optics
ECLDISPLAYCRMX27B
ECLDISPLAYCRMX27B (NEW)
2700K
Black
Not Included
Not Included
ECLDISPLAYCRMX30B
ECLDISPLAYCRMX30B (NEW)
3000K
Black
Not Included
Not Included
ECLDISPLAYCRMX40B
ECLDISPLAYCRMX40B (NEW)
4000K
Black
Not Included
Not Included
ECLDISPLAYCRMX56B
ECLDISPLAYCRMX56B (NEW)
5600K
Black
Not Included
Not Included
ECLDISPLAYCRMX27W
ECLDISPLAYCRMX27W (NEW)
2700K
White
Not Included
Not Included
ECLDISPLAYCRMX30W
ECLDISPLAYCRMX30W (NEW)
3000K
White
Not Included
Not Included
ECLDISPLAYCRMX40W
ECLDISPLAYCRMX40W (NEW)
4000K
White
Not Included
Not Included
ECLDISPLAYCRMX56W
ECLDISPLAYCRMX56W (NEW)
5600K
White
Not Included
Not Included

Accessories & Related Products

ECLDISPPRL08W
ECLDISPPRL08W
(Optional)
Fix Profile 8° Lens, with 4 framing shutters, for EclDisplay, white
ECLDISPPRL08B
ECLDISPPRL08B
(Optional)
Fix Profile 8° Lens, with 4 framing shutters, for EclDisplay, black
ECLDISPPHDZL2040W
ECLDISPPHDZL2040W
(Optional)
20° - 40° Zoomable High definition profile lenses for Ecl Display series, white

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetEcldisplaycrmx_A4_DATASHEET_(EN).pdf433KB

DMX chart & personalities

File name File size Download
DMX chartEcldisplaycrmx_DMX_CHARTS.pdf124KB

CAD symbols & drawings

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.1.01.0 STABLE 13/01/2025 Improvement:
  • Reduced brightness of Green and Blue LEDs.
Rev. 1.0
