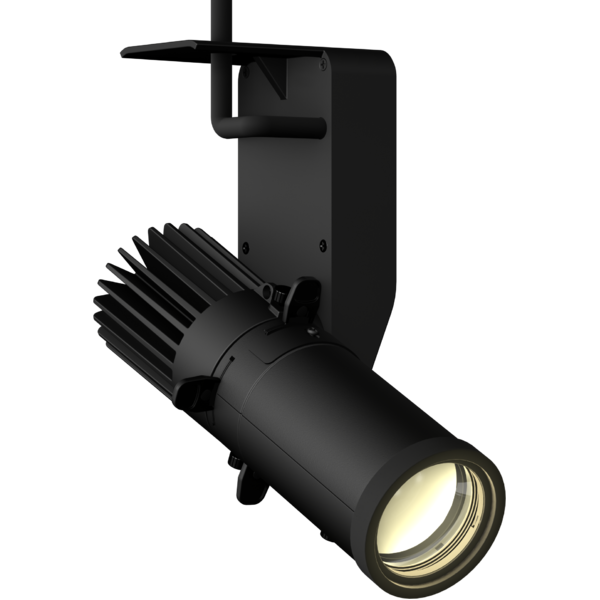

EclMini CC

18W White LED gallery light, constant current. Connects to an external PSU and driver

The EclMini is a range of ultra-compact, low-profile LED spotlights, designed for galleries, retail or any hospitality venue. There are several control options, sources, and optics available to fit any application.
The EclMini CC connects to an external Constant Current PSU and driver (max 500mA/36V). PROLIGHTS accessories are available or, alternatively, the use any third-party compatible components is possible, leaving to system integrators to install these spotlights in venues with their own wiring distribution and control.
The EclMini CC includes a high-efficiency 18W white, high CRI LED source, available in 2,700K, 3,000K, 4,000K, 5,600K variants, with a wide choice of optics and accessories available, making it a multi-purpose fixture.

5 YEARS WARRANTY

Main features:

  • Constant Current version, connects to an external PSU and driver (max 500 mA/36V)
  • 18W High-CRI White LED available in 2,700K, 3,000K, 4,000K, 5,600K versions, black and white housing
  • Multiple lens options: 19° / 26° / 36° / 50° profile or zoomable 15-30° or 25-50° wash optics
See variants CONFIGURATOR

PHOTO GALLERY

EclMini CC
EclMini CC
EclMini CC
EclMini CC
EclMini CC
EclMini CC
EclMini CC
EclMini CC

Technical specifications

LIGHT SOURCE
  • Source: 18W White COB LED
  • CCT: 2.700K - 3.000K - 4.000K - 5.600
  • Luminous flux: (3.000K) (19°) 1.134 lm - (26°) 1.130 lm - (36°) 1.144 lm - (50°) 1.105
  • Luminous flux: (5.600K) (19°) 1.230 lm - (26°) 1.250 lm - (36°) 1.251 lm - (50°) 1.212 lm @full
  • Lux: (3.000K) (19°) 588 lx - (26°) 334 lx - (36°) 184 lx - (50°) 98lx
  • Lux: (5.600K) (19°) 632 lx - (26°) 363 lx - (36°) 193 lx - (50°) 105lx
  • CRI: 93 @2.700 K; 92 @3.000 K; 89@4.000 K; 93 @5.600 K
  • R9: TBD
  • TLCI: 84 @2.700 K; 87 @3.000 K; 89 @4.000 K; 95 @5.600 K
  • TM30 Rf: > 89 @2.700 K; 3.000 K; 4.000 K; > 93 @5.600 K
  • TM30 Rg: > 102 @2.700 K; 3.000 K; 4.000 K; 5.600 K
  • Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
  • Optics: (profile lens - optional) 19°, 26°, 36°, 50° - gobo holder included
  • Zoom range: (wash lens - optional) 15° ~ 30° or 25° ~ 50°
  • Other: 360° lens rotation - optional 360° rotating barndoors and gel frame holder
  • Other: (profile lens - optional) gobo holder size E, outer: 37,3 mm - image: 24 mm - thickness: 1,1 mm
BODY
  • Hardware on-board: lockable tilt with screw
  • Body: aluminium die-casting
  • Body colour: RAL 9004 or RAL 9003
  • Other: 1m cable included - Cable diameter range: 6 - 10 mm
ELECTRICAL
  • Constant Current mains: max 500mA/36V
  • Max power consumption: 18W
  • Output (at 230V): 40 units on a single power line
PHYSICAL
  • Operating Temperature: -10° ~ +45°
  • IP rating: 20
  • Cooling: passive cooling and fan-free
  • Suspension and fixing: track / hanging / ceiling installation
  • Data connection: screw terminal blocks
  • Dimensions (WxHxD): 103X170x103mm / 4.06''x4.06''
  • Weight: 1kg / 2.2lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT

Versions

Code
CT
Finishing
Track adapter
Optics
ECLMINICC27KB
ECLMINICC27KB
2700K
Black
Not included
Not included
ECLMINICC30KB
ECLMINICC30KB
3000K
Black
Not included
Not included
ECLMINICC40KB
ECLMINICC40KB
4000K
Black
Not included
Not included
ECLMINICC56KB
ECLMINICC56KB
5600K
Black
Not included
Not included
ECLMINICC27KW
ECLMINICC27KW
2700K
White
Not included
Not included
ECLMINICC30KW
ECLMINICC30KW
3000K
White
Not included
Not included
ECLMINICC40KW
ECLMINICC40KW
4000K
White
Not included
Not included
ECLMINICC56KW
ECLMINICC56KW
5600K
White
Not included
Not included
