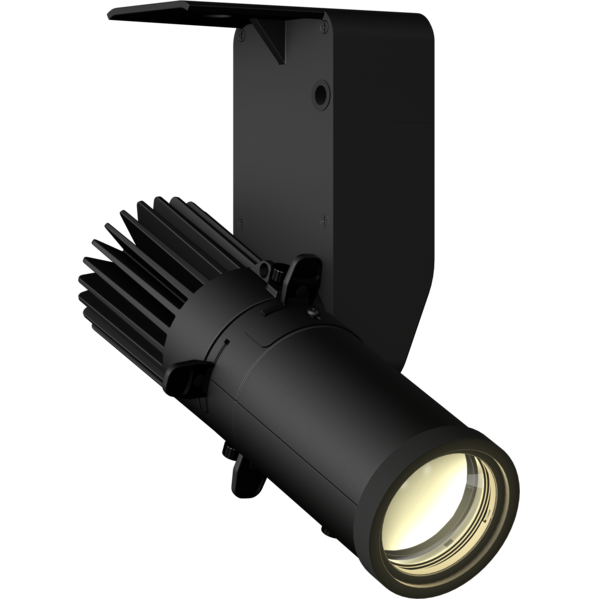

EclMini DAT

18W White LED Gallery light, with data control (DMX, DALI T6, knob-dimming)

The EclMini is a range of ultra-compact, low-profile LED spotlights, designed for galleries, retail or any hospitality venue.
There are several control options, sources, and optics available to fit any application.
The EclMini DAT is configurable and addressed through RDM and includes a broad set of on-board control options: DMX, DALI Type 6 or local knob dimming control.
The EclMini DAT includes a high-efficiency 18W white, high CRI LED source, available in 2,700K, 3,000K, 4,000K, 5,600K variants, with a wide choice of optics and accessories available, making it truly a multi-purpose fixture.

5 YEARS WARRANTY

Main features:

  • Data control through RDM, DMX, DALI Type 6 and local knob dimming
  • 18W High-CRI White LED available in 2,700K, 3,000K, 4,000K, 5,600K versions, black and white housing
  • Multiple lens options: 19° / 26° / 36° / 50° profile or zoomable 15°-30° or 25°-50° wash optics
See variants CONFIGURATOR

PHOTO GALLERY

EclMini DAT
EclMini DAT
EclMini DAT
EclMini DAT
EclMini DAT
EclMini DAT
EclMini DAT
EclMini DAT

Technical specifications

LIGHT SOURCE
  • Source: 18W White COB LED
  • CCT: 2.700K - 3.000K - 4.000K - 5.600
  • Luminous flux: (3.000K) (19°) 1.134 lm - (26°) 1.130 lm - (36°) 1.144 lm - (50°) 1.105 @Full
  • Luminous flux: (5.600K) (19°) 1.230 lm - (26°) 1.250 lm - (36°) 1.251 lm - (50°) 1.212 lm @full
  • Lux: (3.000K) (19°) 588 lx - (26°) 334 lx - (36°) 184 lx - (50°) 98lx @5 m full
  • Lux: (5.600K) (19°) 632 lx - (26°) 363 lx - (36°) 193 lx - (50°) 105lx @5 m full
  • CRI: 93 @2.700 K; 92 @3.000 K; 89@4.000 K; 93 @5.600 K
  • TLCI: 84 @2.700 K; 87 @3.000 K; 89 @4.000 K; 95 @5.600 K
  • TM30 Rf: > 89 @2.700 K; 3.000 K; 4.000 K; > 93 @5.600 K
  • TM30 Rg: > 102 @2.700 K; 3.000 K; 4.000 K; 5.600 K
  • Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
  • Optics: (profile lens - optional) 19°, 26°, 36°, 50° - gobo holder included
  • Zoom range: (wash lens - optional) 15° ~ 30° or 25° ~ 50°
  • Other: 360° lens rotation - optional 360° rotating barndoors and gel frame holder
  • Other: (profile lens - optional) gobo holder size E, outer: 37,3 mm - image: 24 mm - thickness: 1,1 mm
DYNAMIC EFFECTS
  • Control Resolution: 16-bit dimmer
  • Static mode: selection of static dimmer
  • Manual mode: manual adjustment of dimmer and strobe
BODY
  • Hardware on-board: lockable tilt with screw
  • Body: aluminium die-casting
  • Body colour: RAL 9004 or RAL 9003
  • Other: cable not included - Cable diameter range: 6 - 10 mm
CONTROL
  • Protocols: Local Knob, DMX, DALI Type6, RDM
  • DMX channels: 1 / 2 / 3 / 4channel
  • RDM: RDM for remote monitoring and settings
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • LED Control: flicker free operation
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 25W
  • Output (at 230V): 68 units on a single power line
  • Power factor: > 0,90
PHYSICAL
  • Operating Temperature: -10° ~ +45°
  • IP rating: 20
  • Cooling: passive cooling and fan-free
  • Suspension and fixing: track / hanging / ceiling installation
  • Data connection: screw terminal blocks
  • Power connection: screw terminal blocks
  • Dimensions (WxHxD): 126x170x95mm / 4.96''x6.69''x3.74''
  • Weight: 1,15kg / 2.54lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT

Versions

Code
CT
Finishing
Track adapter
Optics
ECLMINIDAT27KB
ECLMINIDAT27KB
2700K
Black
Not included
Not included
ECLMINIDAT30KB
ECLMINIDAT30KB
3000K
Black
Not included
Not included
ECLMINIDAT40KB
ECLMINIDAT40KB
4000K
Black
Not included
Not included
ECLMINIDAT56KB
ECLMINIDAT56KB
5600K
Black
Not included
Not included
ECLMINIDAT27KW
ECLMINIDAT27KW
2700K
White
Not included
Not included
ECLMINIDAT30KW
ECLMINIDAT30KW
3000K
White
Not included
Not included
ECLMINIDAT40KW
ECLMINIDAT40KW
4000K
White
Not included
Not included
ECLMINIDAT56KW
ECLMINIDAT56KW
5600K
White
Not included
Not included
